RJLD-260TC1 10/100Base-T RJ45 with Magnetics Cross LPJ4011ABNL MagJack

Name: RJLD260TC1 10100BaseT RJ45 with Magnetics Cross LPJ4011ABNL MagJack
Brand: LINK-PP
Price: 0.05 USD

Wholesale RJLD-260TC1 10/100Base-T RJ45 with Magnetics Cross LPJ4011ABNL MagJack from china suppliers

Brand Name : LINK-PP

Model Number : RJLD-260TC1

Certification : RoHS compliant

Place of Origin : China

MOQ : 50/500/1000/25K

Price : $0.05-$1.28

Payment Terms : TT,NET30/60/90 Days

Supply Ability : 4200K-PCS/Month

Delivery Time : in Stock

Packaging Details : 50pcs/tray,1200pcs/carton

Part Number : RJLD-260TC1

Cross : LPJ4011ABNL

Data Rate : 10/100Base-T

Integrated magnetics : With

Port Configuration : Single-port (1×1)

Shielding : Shielded

PCB Mounting : Side-Entry

Orientation : Latch-down

LED indicators : Dual

Industrial temperature range : -40 °C to +85 °C

Contact Now

RJLD-260TC1 is a single-port RJ45 modular jack with integrated magnetics, designed for 10/100Base-T Ethernet applications.

It combines the Ethernet interface and isolation transformer in one compact, shielded housing, simplifying PCB layout and improving EMI performance.

RJLD-260TC1 Electrical Characteristics

RJLD-260TC1 meets IEEE Ethernet requirements and provides reliable signal integrity for LAN interfaces.

Operating standard: IEEE 802.3 / 802.3u
Nominal OCL: ≥ 350 µH @ 100 kHz, 0.1 Vrms, 8 mA bias
Hi-Pot isolation: 1500 Vrms minimum
Low insertion loss and excellent crosstalk suppression
Designed for stable performance in noisy industrial environments

Mechanical & Physical Design

Mounting type: Through-hole
PCB orientation: Side entry (right angle)
Connector interface: 8P8C RJ45
Shielding: Full metal shield
LEDs: Integrated (typically green & yellow)
Compact footprint suitable for high-density PCB layouts

RJLD-260TC1 Technical Specifications

Electrical Specifications

Parameter	Specification
Ethernet Speed	10/100Base-T
Ethernet Standard	IEEE 802.3 / 802.3u
Integrated Magnetics	Yes
OCL	≥ 350 µH
Dielectric Withstanding Voltage	1500 Vrms
LED Indicators	Yes (Link / Activity)

Mechanical Specifications

Parameter	Specification
Connector Type	RJ45 Modular Jack
Port Configuration	1×1 (Single Port)
Mounting Style	Through Hole
Entry Direction	Side Entry (Right Angle)
Latch Orientation	Latch Down
Shielding	Shielded

Environmental Specifications

Parameter	Specification
Operating Temperature	-40 °C to +85 °C
Storage Temperature	-55 °C to +125 °C
Compliance	RoHS

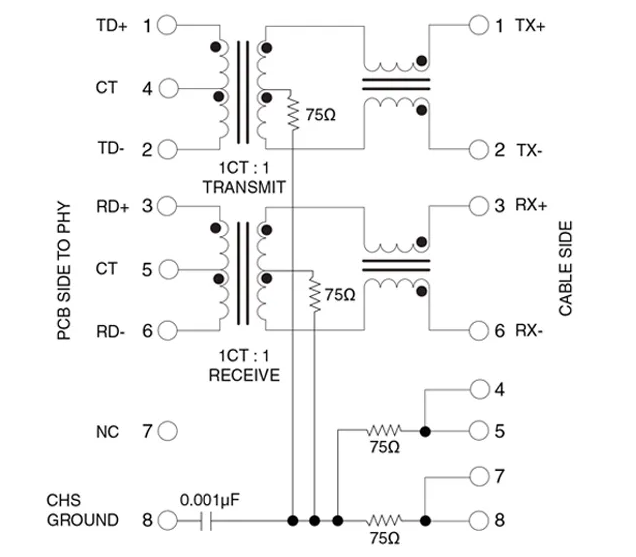

RJLD-260TC1 Datasheet

RJLD-260TC1 10/100Base-T RJ45 with Magnetics Cross LPJ4011ABNL MagJack

Why Choose RJLD-260TC1?

Reduces BOM count with integrated magnetics
Improves EMI performance with full shielding
Stable operation in industrial temperature environments
Ideal for cost-effective 10/100M Ethernet designs
