LP2019ANL PoE+ LAN Transformer 10/100 BASE-T VOIP Magnetics

Name: LP2019ANL PoE LAN Transformer 10100 BASET VOIP Magnetics
Brand: LINK-PP
Price: 1 USD

Wholesale LP2019ANL PoE+ LAN Transformer 10/100 BASE-T VOIP Magnetics from china suppliers

Brand Name : LINK-PP

Model Number : LP2019ANL

Certification : UL,ROHS,Reach,ISO

Place of Origin : Guangdong,China

MOQ : 50/500/1000

Price : Supportive

Payment Terms : TT,NET30/60/90 Days

Supply Ability : 3800000PCS/Month

Delivery Time : Stock

Packaging Details : Reel Package

Part Number : LP2019ANL

Specification : LP2019ANL

Mounting : SMD

Apllication : 10/100base-T PoE

Measure : 12.70x9.30x6.20mm

Samples : Free

Data Rate : 10/100Base-TX

Number of Channels/Ports : Single

PoE : PoE+

Mounting Type : SMT

Turns Ratio : 1:1

Operating Temperature Range : -40°C to +85°C

Contact Now

Overview of LP2019ANL PoE+ LAN Transformer

The LP2019ANL is a single-port 10/100BASE-T Ethernet LAN transformer designed for PoE+ applications. Featuring an open-frame SMT design, it provides stable signal integrity, 1CT:1CT transformer ratios, and reliable isolation performance. It is fully compatible with major industry brands and maintains identical electrical characteristics to the NL version. With a wide operating temperature range and support for AutomDX, the LP2019ANL is ideal for PoE-enabled network devices such as IP cameras, VoIP phones, and industrial Ethernet equipment.

LP2019ANL Key Specifications

Category	Specification
Model	LP2019ANL
Type	LAN Transformer
Status	Active
Compatible Brands	Bothhand, Halo, Hanrun, LINK-PP, Pulse, WE
Core Features	PoE+ Supported, AutomDX Compatible, Same as NL Version
Ports	Single Port
Ethernet Speed	10/100 BASE-T
Pin Count	16 Pins
Mounting Type	Surface Mount
Construction	Open Frame
Package Type	Tape & Reel

Electrical Parameters

Parameter	Specification
Operating Current	350mA
Turns Ratio (RX/TX)	1CT:1CT (1:1 TX, 1:1 RX)
Cores per Port	4
RX/TX Configuration	T, C, S
Operating Temperature	-40℃ to +85℃
Application	Ethernet (PoE+)

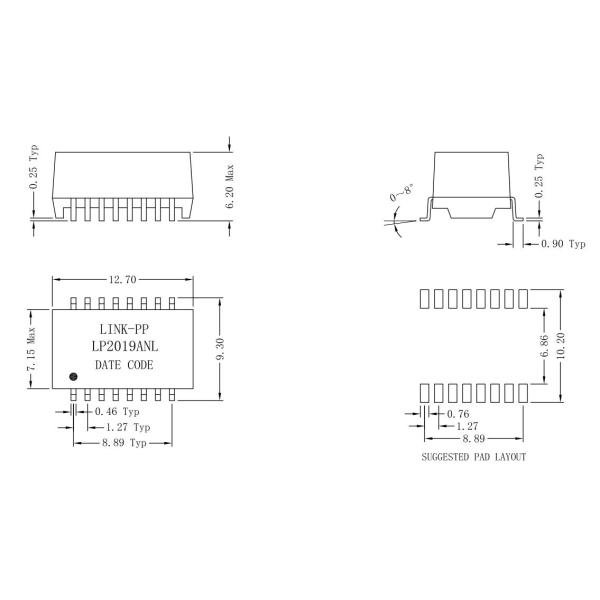

Mechanical & Packaging Details

Dimension / Info	Specification
Package Height	0.226" / 5.75 mm
Package Length	0.500" / 12.70 mm
Package Width	0.366" / 9.30 mm
Net Weight (per unit)	0.001 kg
Standard Pack Quantity	750 pcs/Reel
Quantity per Carton	4500 pcs
Carton Size	37 × 37 × 25 cm
Gross Weight per Carton	6.8 kg

Inventory & Delivery

Item	Details
Current Stock	81,014 Units
Lead Time (In Stock)	1–2 Working Days
Lead Time (Out of Stock)	4–6 Weeks
Shipping Cost	$29.47

Pricing Information

Quantity	Unit Price
1 Unit	$1.08

LP2019ANL Datasheet
